50T Pressure Automatic Cold Laminating Machine with Forklift Holes for Composite Sandwich Panels and Multi-Layer Ocean Diamond Panels

Name: 50T Pressure Automatic Cold Laminating Machine with Forklift Holes for Composite Sandwich Panels and MultiLayer Ocean Diamond Panels
Brand: Henrriet
Price: 1 USD

Buy cheap 50T Pressure Automatic Cold Laminating Machine with Forklift Holes for Composite Sandwich Panels and Multi-Layer Ocean Diamond Panels product

Brand Name : Henrriet

Certification : CE、ISO 9001

Place of Origin : China

MOQ : 1

Price : Online/offline communication

Payment Terms : T/T

Delivery Time : 15-20Work days

Packaging Details : Film with Foam

Max pressuer : 50T

Work platen size : 2500 * 1250mm

Oil cylinder specification : 125mm * 2pcs

Motor power : 4kw / 5.5kw

Workd effctively : 1000/1300/1500/1800mm(customizable)

Overall dimensions （Standard Model） : 3000*1250*2900mm

Weight (Standard model-about) : 2300kg

Contact Now

50 Tons Pressure Automatic Cold Laminating Machine

Production of composite sandwich panels and multi-layer ocean diamond panels with forklift holes available

Product Description

The fully automatic cold press laminating machine is an industrial-grade system designed to achieve structural bonding and dimensional stabilization of multi-layer composite panels through room-temperature, high-pressure consolidation. Powered by a heavy-duty hydraulic system and paired with cold-curing structural adhesives, the equipment applies uniformly distributed high pressure across the entire lamination stack to ensure complete adhesive penetration and intimate contact between substrate layers—without the addition of heat. This eliminates the risk of thermal distortion, coating degradation, and core material collapse commonly associated with hot pressing processes.

Key Features

Superior Production Capacity: The cold pressing process achieves high bond strength and exceptional flatness in composite panels. The machine generates consistent, uniformly distributed pressing force through precision hydraulic architecture with automatic pressure-replenishment function.
Integrated Safety and Protection: Control panel equipped with prominent emergency stop button following "press to stop, release to reset" logic for complete system shutdown under emergency conditions.
Wide-Ranging Application Versatility: Suitable for composite sandwich panels with metal sheets, fiber-reinforced panels, multi-layer engineered boards, medium-density fiberboard, and oriented strand board composites.
Easy Maintenance and Technical Support: Regular pressure sensor calibration and hydraulic system inspection ensure long-term reliability and performance.

Technical Specifications

Max Pressure	50T
Work Platen Size	2500 × 1250mm
Oil Cylinder Specification	125mm × 2pcs
Motor Power	4kw / 5.5kw
Work Effectively	1000/1300/1500/1800mm (customizable)
Overall Dimensions (Standard Model)	3000 × 1250 × 2900mm
Weight (Standard Model)	2300kg

Company Advantages

Two In-House Factories: Better prices and faster delivery with no middlemen markups
30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use

Service Support

Warranty: 1 year
Packaging: Film with foam
24-hour customer service hotline with 48-hour response to repair needs
Free video training for operators and process guidance manuals
Lifetime technical support and software upgrade services

Scope of Application

50T Pressure Automatic Cold Laminating Machine with Forklift Holes for Composite Sandwich Panels and Multi-Layer Ocean Diamond Panels

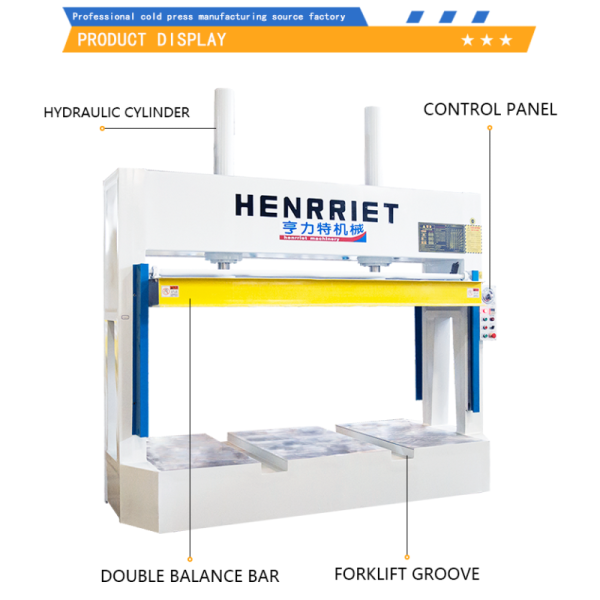

Product Display

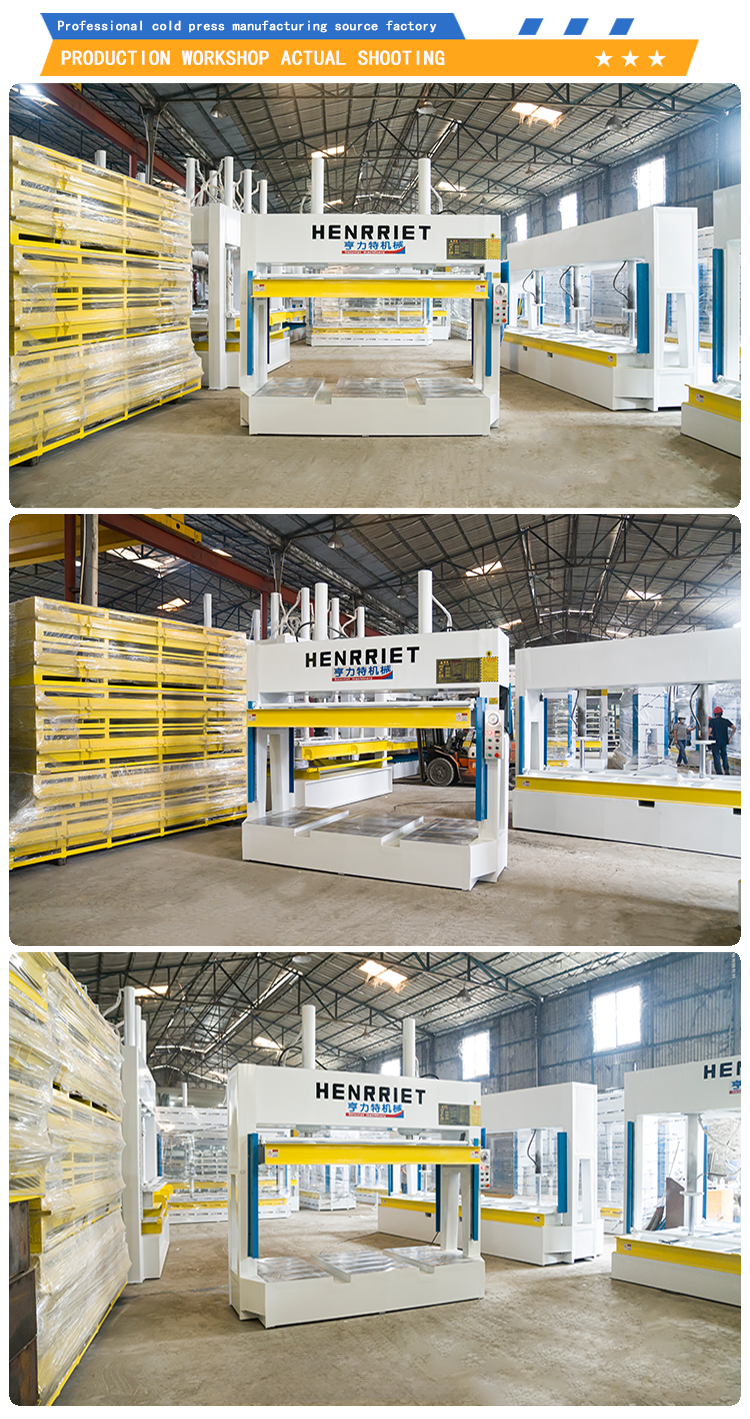

Production Workshop

Product Details

Corporate Advantages

International Visitors and Communication

Manufacturing Process

Industry Exhibitions

Packaging and Logistics

Certificates and Honors
